Data contracts with asset checks

Data contracts define agreements about the structure, format, and quality of data, ensuring consistency and reliability across your data pipeline. Without formal contracts, schema changes such as renamed columns, type changes, or missing fields can cause failures in downstream systems. These issues are often discovered too late, leading to broken pipelines and unreliable data.

In Dagster, you can implement data contracts using asset checks that validate the actual schema against a predefined contract specification.

Getting started

To implement data contracts using asset checks, follow these general steps:

1. Define your assets with schema metadata: Configure assets to automatically extract and attach column schema metadata
2. Create a contract specification: Define the expected schema, types, and validation rules in a YAML file
3. Define an asset check: Create an asset check that validates the actual schema against the contract
4. Pass the asset check to the Definitions object: Asset checks must be added to Definitions for Dagster to recognize them
5. View validation results in the UI: Contract validation results will appear in the UI when the check runs

Defining assets with schema metadata

src/<project_name>/defs/assets.py

import pandas as pd
from dagster_pandas.data_frame import create_table_schema_metadata_from_dataframe

import dagster as dg


@dg.asset
def shipments(context: dg.AssetExecutionContext) -> pd.DataFrame:
    """Example shipments asset with column schema metadata."""
    df = pd.DataFrame(
        {
            "shipment_id": [1, 2, 3],
            "customer_name": pd.Series(
                [
                    "Alice",
                    "Bob",
                    "Charlie",
                ],
                dtype="string",
            ),
            "amount": [100.50, 200.75, 150.25],
            "ship_date": pd.to_datetime(["2024-01-01", "2024-01-02", "2024-01-03"]),
        }
    )

    context.add_output_metadata(
        {"dagster/column_schema": create_table_schema_metadata_from_dataframe(df)}
    )
    return df

The shipments asset uses create_table_schema_metadata_from_dataframe from dagster-pandas to automatically extract and attach column schema metadata. This metadata becomes available for validation by asset checks without requiring manual schema specification.

Defining the contract specification

The data contract is defined in a separate YAML file, making it easy to version control and collaborate across teams:

src/<project_name>/defs/shipments_contract.yaml

# data_contracts/shipments_contract.yaml
name: shipments_contract
version: "1.0"
description: "Data contract for shipments table"

schema:
  columns:
    shipment_id:
      type: "int64"
      description: "Unique identifier for shipment"
      required: true
    customer_name:
      type: "string"
      description: "Name of the customer"
      required: true
    amount:
      type: "float64"
      description: "Shipment amount"
      required: true
    ship_date:
      type: "datetime64[ns]"
      description: "Date when shipment was made"
      required: true

The contract defines expected column names and types, field descriptions, required columns, and includes a version number for tracking changes over time.

Implementing contract validation

An asset check validates the actual asset schema against the data contract:

src/<project_name>/defs/asset_checks.py

import pandas as pd
import yaml

import dagster as dg


@dg.asset_check(
    asset=shipments, description="Validate shipments schema against data contract"
)
def validate_shipments_data_contract(
    context: dg.AssetCheckExecutionContext, shipments: pd.DataFrame
) -> dg.AssetCheckResult:
    """Check that the shipments asset matches the data contract schema."""
    # Read the data contract YAML file
    try:
        with open(dg.file_relative_path(__file__, "shipments_contract.yaml")) as file:
            contract = yaml.safe_load(file)
    except FileNotFoundError:
        return dg.AssetCheckResult(
            passed=False, metadata={"error": "Data contract YAML file not found"}
        )

    # Get the current asset's column schema from metadata
    latest_materialization = context.instance.get_latest_materialization_event(
        asset_key=dg.AssetKey(["shipments"])
    )

    if (
        not latest_materialization
        or not latest_materialization.dagster_event.event_specific_data.materialization.metadata
    ):
        return dg.AssetCheckResult(
            passed=False, metadata={"error": "No schema metadata found for asset"}
        )

    # Extract the TableSchema from metadata
    schema_metadata = latest_materialization.dagster_event.event_specific_data.materialization.metadata.get(
        "dagster/column_schema"
    )

    if not schema_metadata:
        return dg.AssetCheckResult(
            passed=False, metadata={"error": "No column schema metadata found"}
        )

    # Convert TableSchema to dict for comparison
    actual_schema = {col.name: col.type for col in schema_metadata.value.columns}

    # Extract expected schema from contract
    expected_schema = {}
    if "schema" in contract and "columns" in contract["schema"]:
        for col_name, col_info in contract["schema"]["columns"].items():
            expected_schema[col_name] = col_info.get("type", "unknown")

    # Compare schemas
    mismatches = []
    missing_columns = []
    extra_columns = []

    # Check for missing columns in actual schema
    for col_name in expected_schema:
        if col_name not in actual_schema:
            missing_columns.append(col_name)

    # Check for extra columns in actual schema
    for col_name in actual_schema:
        if col_name not in expected_schema:
            extra_columns.append(col_name)

    # Check for type mismatches
    for col_name in expected_schema:
        if col_name in actual_schema:
            if actual_schema[col_name] != expected_schema[col_name]:
                mismatches.append(
                    {
                        "column": col_name,
                        "expected": expected_schema[col_name],
                        "actual": actual_schema[col_name],
                    }
                )

    # Determine if check passed
    passed = (
        len(mismatches) == 0 and len(missing_columns) == 0 and len(extra_columns) == 0
    )

    # Prepare metadata for the result
    result_metadata = {
        "expected_schema": expected_schema,
        "actual_schema": actual_schema,
        "mismatches": mismatches,
        "missing_columns": missing_columns,
        "extra_columns": extra_columns,
    }

    return dg.AssetCheckResult(
        passed=passed,
        metadata=result_metadata,
        severity=dg.AssetCheckSeverity.ERROR
        if not passed
        else dg.AssetCheckSeverity.WARN,
    )

The validation process loads the data contract from the YAML file, retrieves the actual schema from the asset's metadata, and compares them to identify type mismatches, missing required columns, and unexpected extra columns. When violations are detected, the check returns detailed results with specific information about each issue.

This approach provides early detection of schema violations, catching issues immediately when assets are materialized rather than waiting for downstream failures. The external YAML contracts serve as explicit documentation that can be version controlled alongside code, facilitating team collaboration and providing a clear communication tool between data producers and consumers.

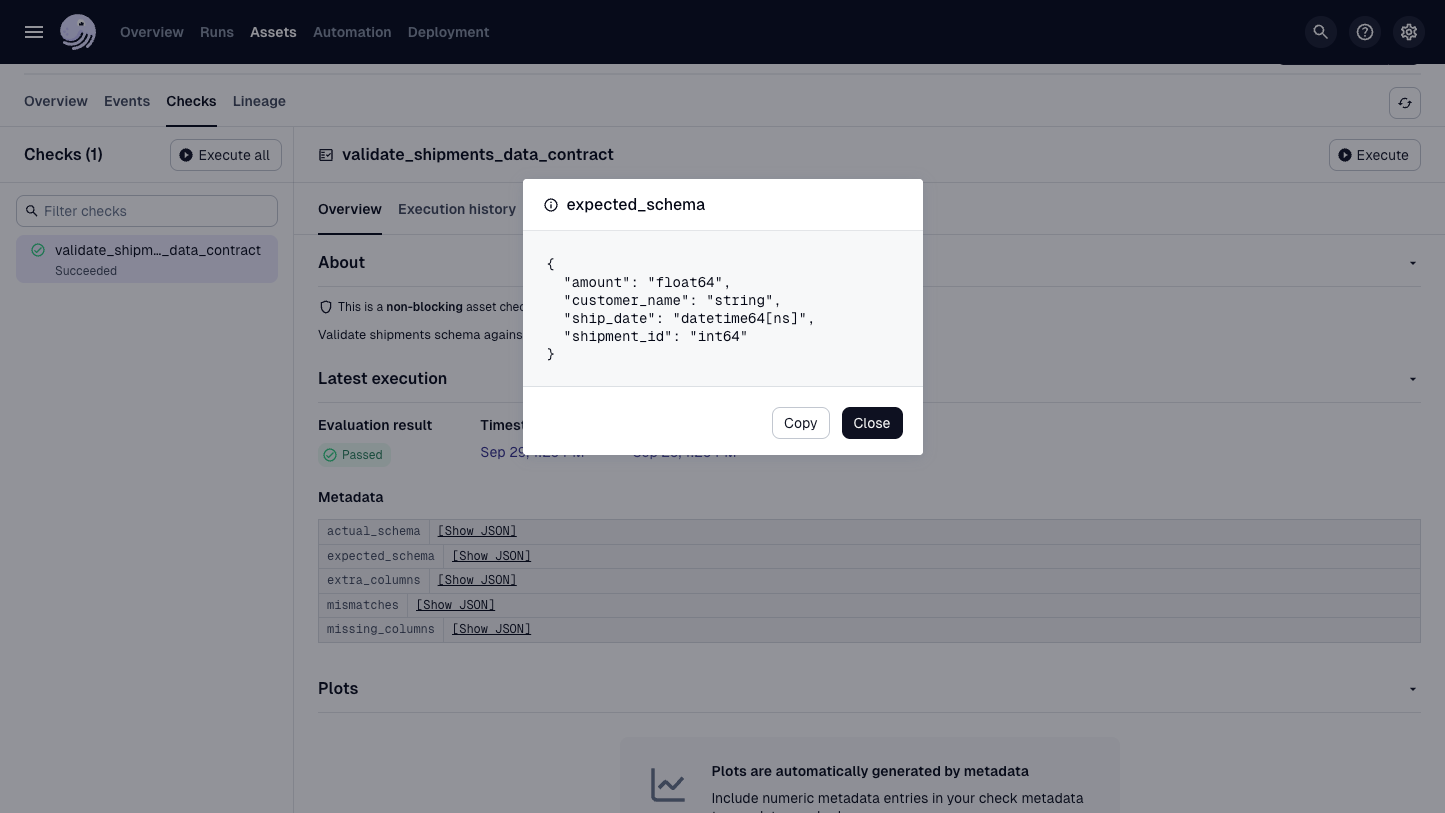

Viewing contract validation results

When the data contract asset check runs, the results will appear in the Dagster UI. Successful validations indicate that the asset schema matches the contract, while failures provide detailed information about specific violations:
